Art Alternatives Professional Isometric Ellipse Template
Art Alternatives Professional Isometric Ellipse Template

Art Alternatives

Art Alternatives Professional Isometric Ellipse Template

Regular price
$23.90
Regular price
Sale price
$23.90

Render ellipses accurately every time.

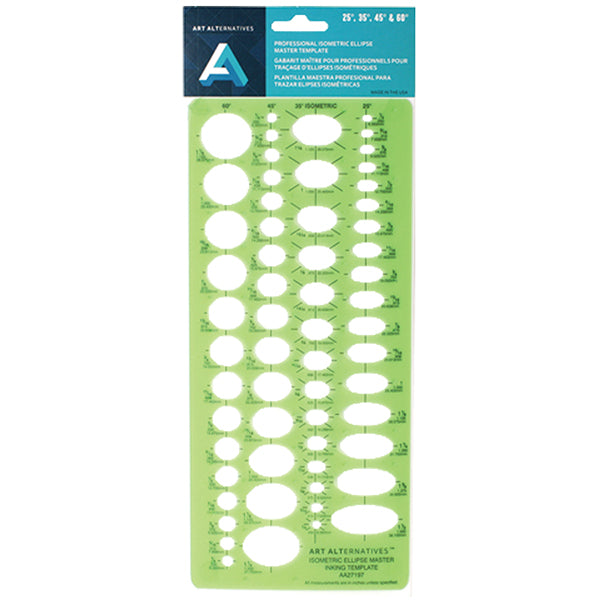

The Art Alternatives Ellipse Template is a flexible, 0.03" thin green plastic drafting template with a matte finish on one side to reduce glare. This template includes 60 ellipses from ¼" to 2 ¾" in projections of 25° , 35° , 45° , and 60° . It includes fractional and decimal inch markings plus metric equivalents, centering lines for precision placement and built-in ink risers for smear-free drawing in pen or pencil. The allowance on all openings is designed for use with 0.5 mm pencil lead or pen point.

  • Measurements in inches with metric equivalents
  • 60, 45, 35 and 25° ellipses
  • Isometric diameters measured through the 30° diagonal
